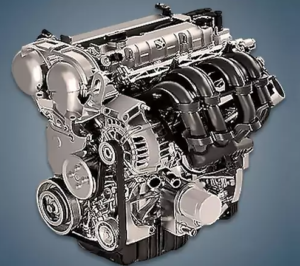

From 2010 to 2018, the basic third-generation Focus and the C-Max compact van were equipped with the 1.6-liter Ford XTDA or 1.6 Duratec Ti-VCT 85 horsepower engine. On European models, such a unit is widely available. The SIM 29 control system, small size, robust design made of long-lasting, high-quality materials, and low weight are all significant benefits of XTDA.
DURATEC Ti-VCT family:
1.5 L – UEJB;
1.6 L – IQDB, HXDA, PNBA, PNDA, SIDA, XTDA.
The engine was installed on:
- Ford C-Max Mk2 in 2010 – 2018;
- Ford Focus Mk3 in 2011 – 2018.
Specifications
| Production years | 2010-2018 |
| Displacement, cc | 1596 |
| Fuel system | injector |
| Power output, hp | 85 |
| Torque output, Nm | 141 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 79 |
| Piston stroke, mm | 81.4 |
| Compression ratio | 11.0 |
| Features | DOHC |
| Hydraulic lifters | no |
| Timing drive | belt |
| Phase regulator | on two shafts |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.1 |
| Fuel type | petrol |
| Euro standards | EURO 5/6 |
| Fuel consumption, L/100 km (for Ford Focus 2012) — city — highway — combined |
8.0 4.7 5.9 |
| Engine lifespan, km | ~300 000 |
| Weight, kg | 91 |
Disadvantages of the XTDA engine
Leaks from the phase control system’s valves were common during the early years of production;
Additionally, this engine cannot handle poor fuel, which causes candles and coils to quickly lose their usefulness;
Here, attachments and a catalyst do not distinguish the highest resource;
The European version’s Duratec Sigma series motors bend the valve when the belt breaks; since there are no hydraulic lifters, make sure the valve clearances are adjusted.
