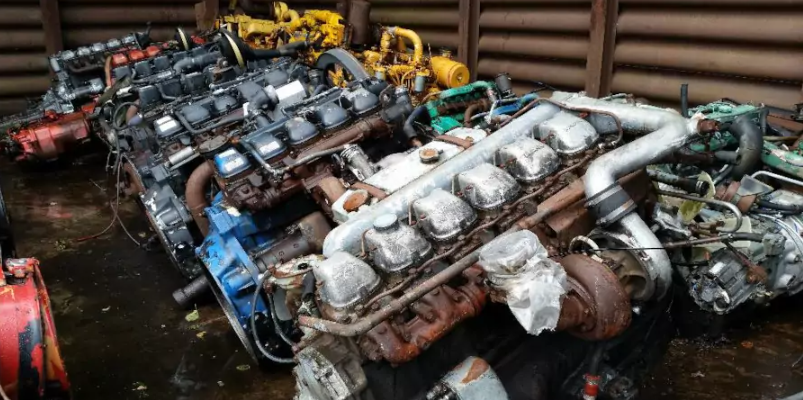

The MAN D2566 engine is a 6-cylinder diesel engine from MAN. All members of this family have excellent technical characteristics and are high-performance.
The series contains several variants of this engine, differing in power.
- D2566 MT – power reaches 206 kW, the model is not equipped with a turbocharger.
- D2566 MTE – this variant develops 147-241 kW.
- D2566 MTF – has a power of 206 kW, as well as versions MTSF, MTH, MTFG.
- D2566 MTHO – power reaches 235 kW.
Specifications
| Engine’s type | diesel |
| Power output, hp / kW | 320 / 235 at 2200 rpm |
| Displacement, cc | 11413 |
| Number of cylinders | 6 |
| Valves | 12 |
| Compression ratio (compression) | 18:1 |
| Cylinder bore, mm | 125 |
| Piston stroke, mm | 155 |
| Crankshaft bearings | 6 |
| Configuration | inline |
| Fuel type | diesel |
| Fuel system | inline injection pump |
| Turbine | intake |
| Cylinder head | OHV |
| Timing mechanism | spur gear |
| Timing | rocker arm |
| Cooling | water |
