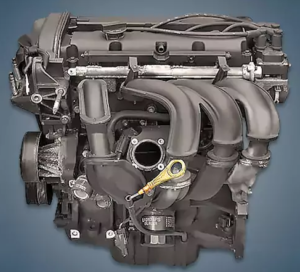

Only the base versions of the second generation of the well-liked Focus model were equipped with the 1.4-liter Ford ASDA or Focus 2 1.4 Duratec engine, which was manufactured between 2004 and 2010. For Euro 3 environmental standards, a simplified version of this motor with its own ASDB index was made available.
The engine was installed on:
- Ford Focus Mk2 in 2004 – 2010.
Specifications
| Production years | 2004-2010 |
| Displacement, cc | 1388 |
| Fuel system | injector |
| Power output, hp | 80 |
| Torque output, Nm | 124 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 76 |
| Piston stroke, mm | 76.5 |
| Compression ratio | 11 |
| Features | DOHC |
| Hydraulic lifters | no |
| Timing drive | belt |
| Phase regulator | no |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 3.8 |
| Fuel type | petrol |
| Euro standards | EURO 4 |
| Fuel consumption, L/100 km (for Ford Focus 2009) — city — highway — combined |
8.6 5.4 6.5 |
| Engine lifespan, km | ~250 000 |
| Weight, kg | 91 |
Disadvantages of the ASDA engine
This motor is twisted to high revs due to low power, which has an impact on the resource;
Here, low-quality gasoline causes candles to burn out quickly, followed by coils;
Additionally, the fuel pump dislikes poor fuel;
The valve is bent in Duratec engine versions intended for the European market that have a damaged timing belt;
Valve clearances must be changed on a regular basis because there are no hydraulic lifters.
