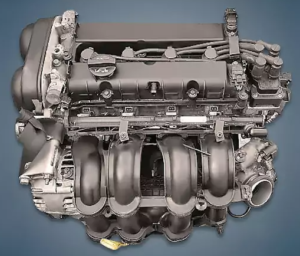

Prior to restyling, the 1.6-liter Ford PNBA or Mondeo 1.6 Duratec Ti-VCT engine was only installed on the basic modifications of the second generation Mondeo model. It was assembled between 2007 and 2010. This power unit was superseded by its Euro 5 version with the KGBA index following the 2010 update.
DURATEC Ti-VCT family:
1.5 L – UEJB;
1.6 L – IQDB, HXDA, PNBA, PNDA, SIDA, XTDA.
The engine was installed on:
- Ford Mondeo Mk4 in 2007 – 2010.
Specifications
| Production years | 2007-2010 |
| Displacement, cc | 1596 |
| Fuel system | injector |
| Power output, hp | 125 |
| Torque output, Nm | 160 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 79 |
| Piston stroke, mm | 81.4 |
| Compression ratio | 11.0 |
| Features | DOHC |
| Hydraulic lifters | no |
| Timing drive | belt |
| Phase regulator | at inlet and outlet |
| Turbocharging | no |
| Recommended engine oil | 5W-30 |
| Engine oil capacity, liter | 4.1 |
| Fuel type | petrol |
| Euro standards | EURO 4 |
| Fuel consumption, L/100 km (for Ford Mondeo 2008) — city — highway — combined |
10.3 5.7 7.4 |
| Engine lifespan, km | ~250 000 |
| Weight, kg | 91 |
Disadvantages of the PNBA engine
The resource is impacted by the Mondeo’s extremely weak motor, which is frequently overloaded;
Here, parts of the ignition system rapidly fail due to poor fuel;
The valves will bend if the timing belt breaks in the engine, so check its condition more frequently;
Here, the rear crankshaft oil seal and the valve cover are the sources of lubricant leakage.
Phase regulators, a gasoline pump, and nearly all attachments are additional weaknesses.
